Tec-Tao — high load
Technical decking for high-load areas — main stages, suite mezzanines and industrial operations.

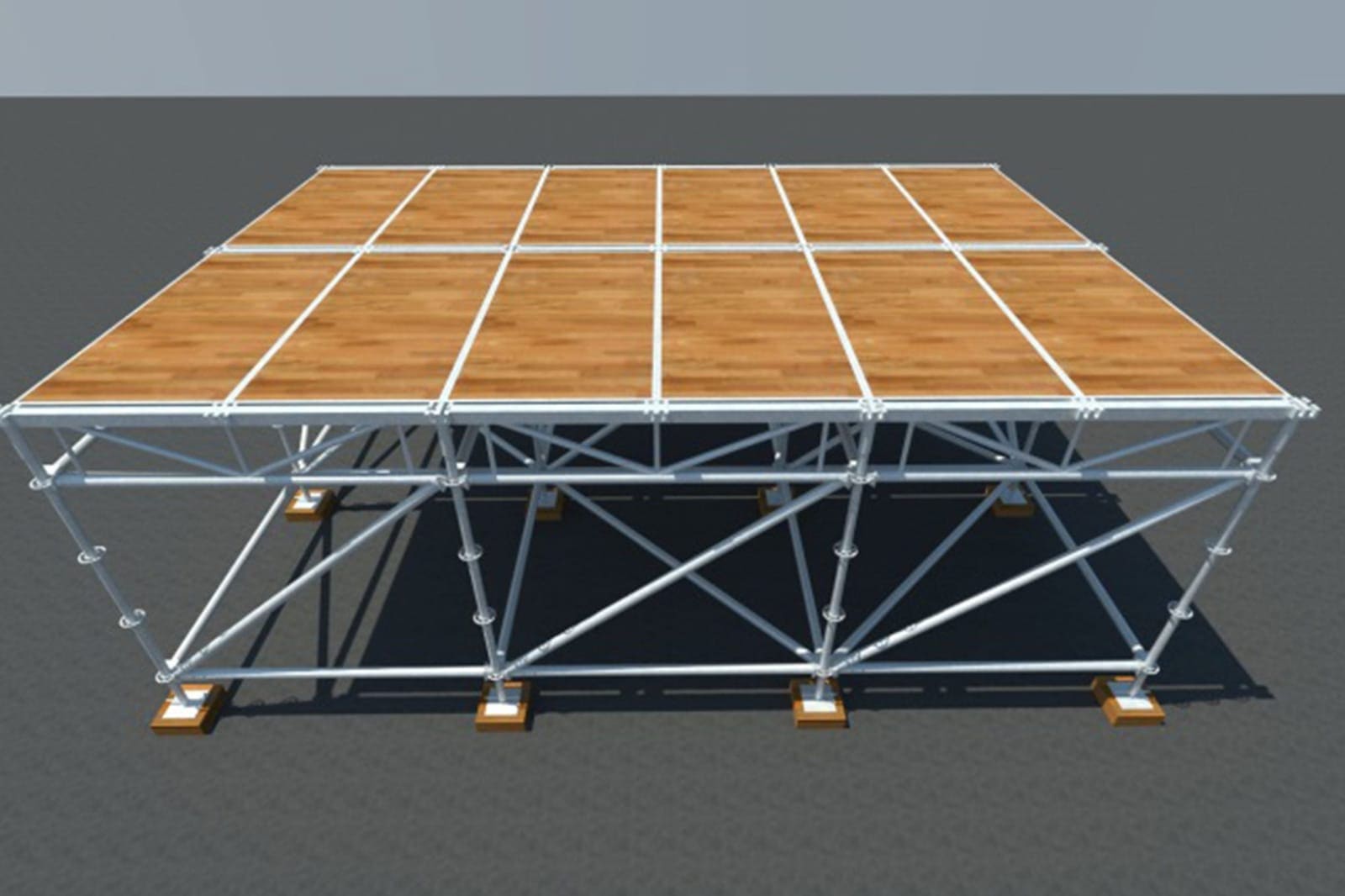

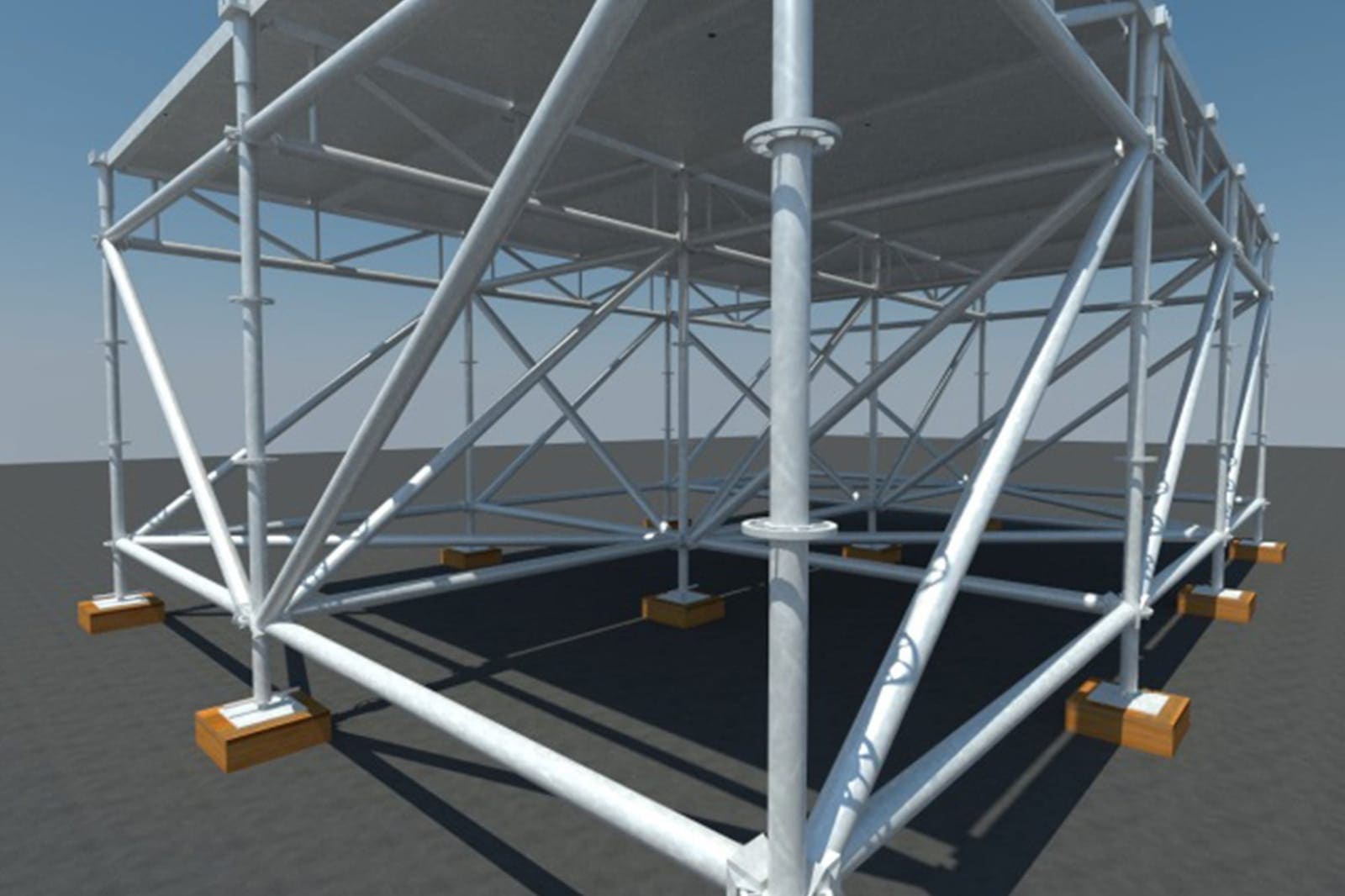

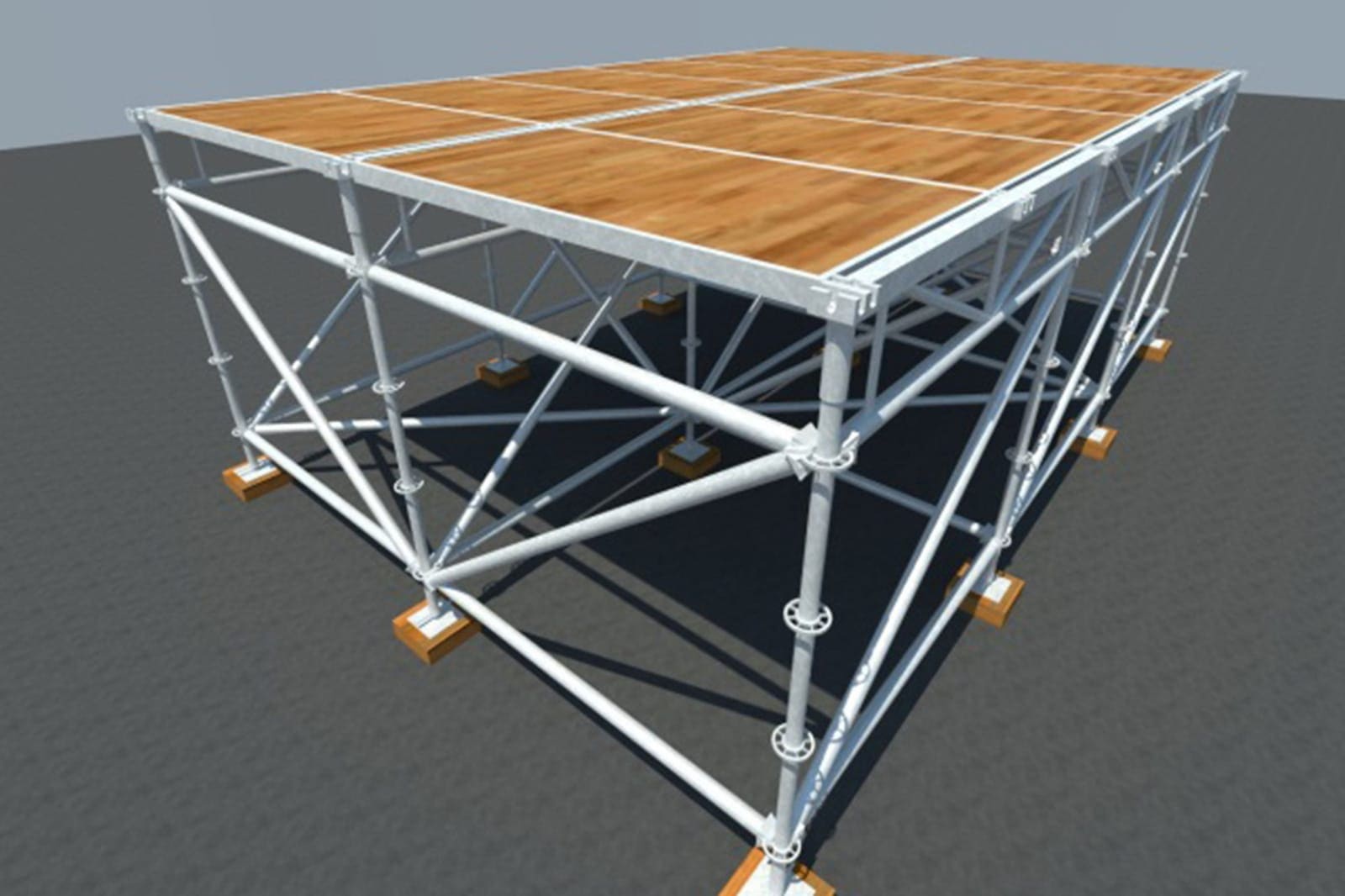

When the event demands loads above 1,000 kgf/m² — stages with rigged truss, broadcast capture platforms with camera dolly tracks, mezzanines with standing crowds — ordinary decking is not enough. The Tec-Tao is the TAO technical deck built for these demands: a reinforced steel structure with a marine plywood top and your choice of finish.
Distributed load of 1,500 kgf/m² certified by ART. Every project receives structural calculations and a report issued by our responsible engineer.
Applications: main festival stages, suite mezzanines, climate-controlled arenas with standing audiences, temporary industrial operations and high-density trade-show pavilions.
Technical specifications
| Specification | Value |
|---|---|
| Usable dimensions | 2.000 × 1.000 mm |
| Structure | Hot-dip galvanized steel · reinforced double profile |
| Top | 25mm marine multi-laminate plywood |
| Finish | Black carpet / marine laminate / anti-slip cover |
| Distributed load | 1.500 kgf/m² |
| Point load | 500 kgf · single point |
| Adjustable feet | 0 — 250 mm |
| Documentation | ART + calculation memorandum + load report |
| Application | Main stages · mezzanines · industrial operation |
Gallery
Where to use
Practical applications and common use contexts.
Main festival stages
Rigged truss, audiovisual platforms with camera tracks.
Suite mezzanines
Structure for standing crowds on elevated suites.
Climate-controlled arenas
Events with high standing-audience density.
Temporary industrial operations
Technical bases with heavy equipment.
Trade-show pavilions
High-density commercial and logistics areas.
Clear your doubts
Frequently asked questions
- Carga distribuída de 1.500 kgf/m² e carga pontual de 500 kgf, certificadas por ART. É o piso técnico da TAO para palcos principais, mezaninos de camarote e operação industrial.
- Cada obra recebe ART, memorial de cálculo e laudo de carga emitidos pelo engenheiro responsável da TAO.
- Por sapatas reguláveis de 0 a 250 mm. A estrutura é em aço galvanizado a fogo com perfil duplo reforçado e tampo em multilaminado naval de 25 mm.
